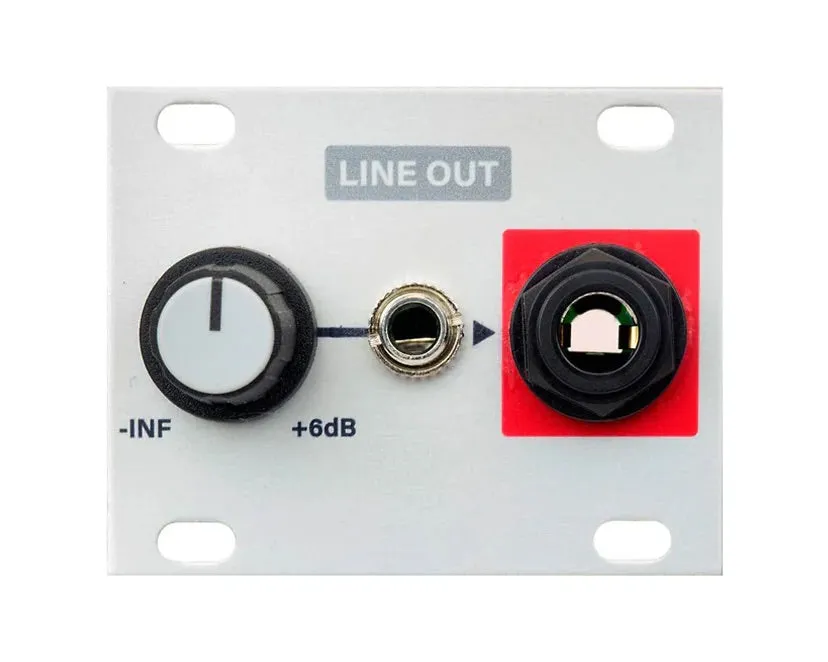

The Intellijel Line Out 1U completes the connection between your Eurorack system and the audio world outside it.
Convert modular signal levels to balanced, line-level audio and route it into rack-mount or desktop FX units, mixing consoles, digital audio workstations, and so on. Simply connect the desired output of your Eurorack patch to the 1/8″ jack, connect the 1/4″ jack to your destination of choice, and adjust the volume as required.

Features

• Output path steps a nominal Eurorack level (10 Vpp) down to 4 dBu with up to 6 dB gain.
• Balanced TRS 1/4″ output path
• Uses a high quality THATCorp balanced line driver IC

Video:

Product Specs

• Item Number: 32479
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: Canada
• MPN: LINEOUT-1U
• Modular Grid: Eurorack
• Dimensions*: 10 HP 26 mm deep
• Power*: 9 mA 12V 9 mA -12V 0 mA 5V

* User contributed details
