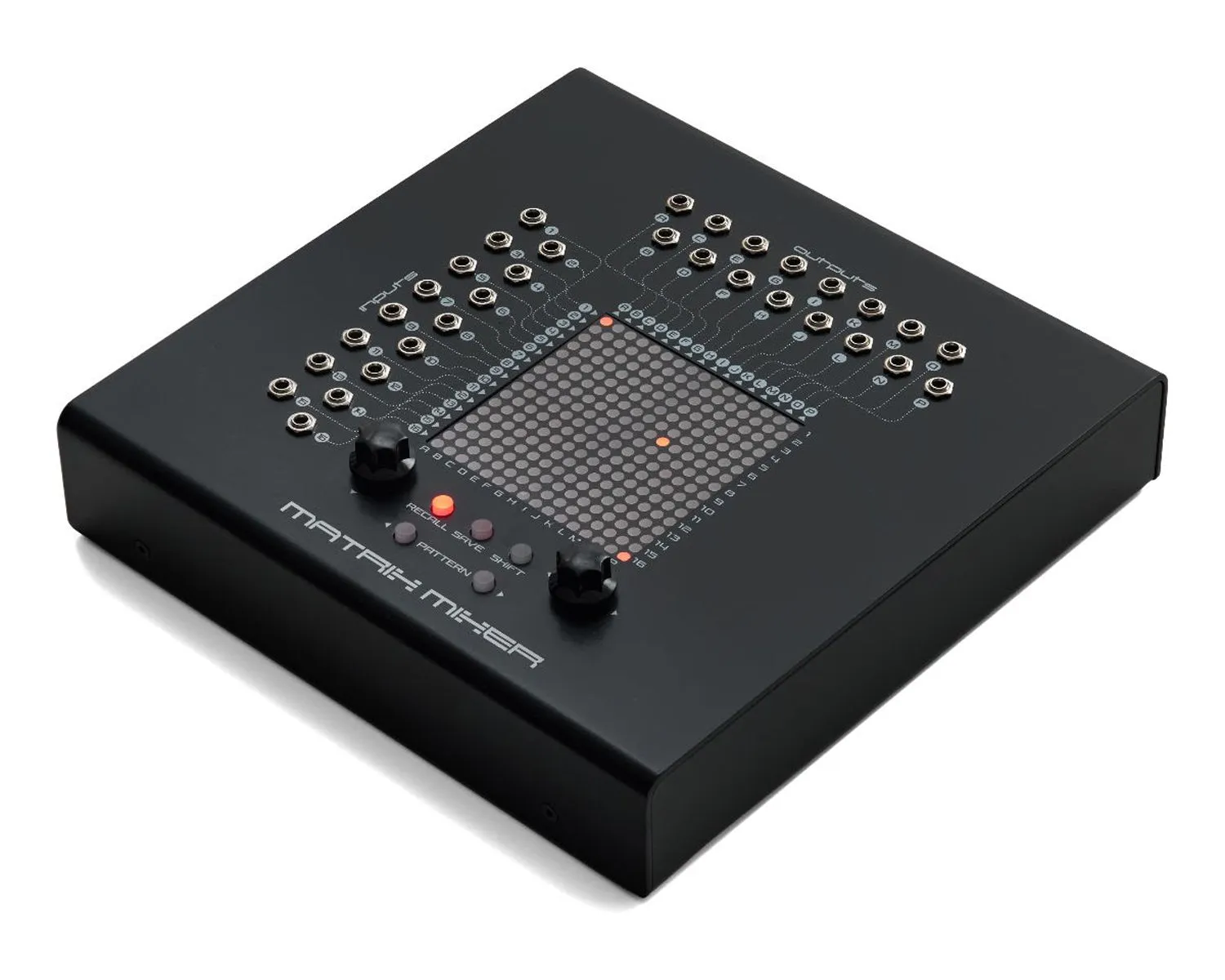

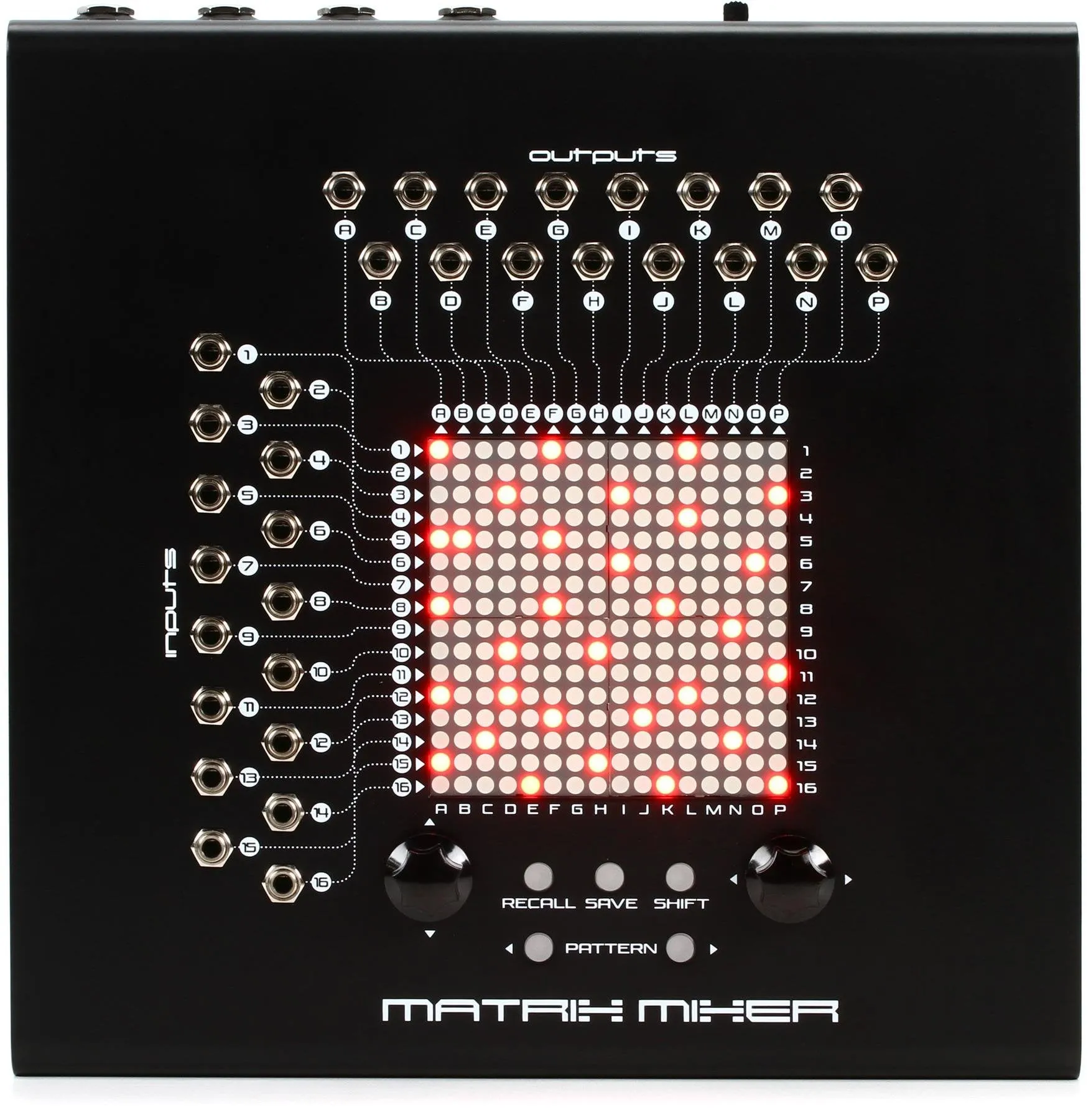

The Erica Synths Desktop Matrix Mixer is a 16 input, 16 - output desktop patch matrix that can route and mix signals with high precision and can create buffered multiples and random patches. It can also interface external instruments with your Eurorack system, and is not limited to Eurorack.

Features:

• All analogue signal path
• 16 buffered, DC coupled inputs
• 16 independent, buffered, DC coupled outputs
• 256 connections, each with 3 attenuation levels
• Random pattern mode with definable randomization area and density
• 254 pattern memory
• Pattern change via MIDI program change messages
• 32 3,5mm jack sockets
• 4 6,3mm jack sockets

Video:

Product Specs

• Item Number: 20472
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Made In: Latvia
• MPN: ES-DMM
• EAN: 4751030828732
• Modular Grid: Pedals
• Dimensions*: 225 mm wide 226 mm high
• Power*: ? mA / 12 V DC / Positive Center

* User contributed details
