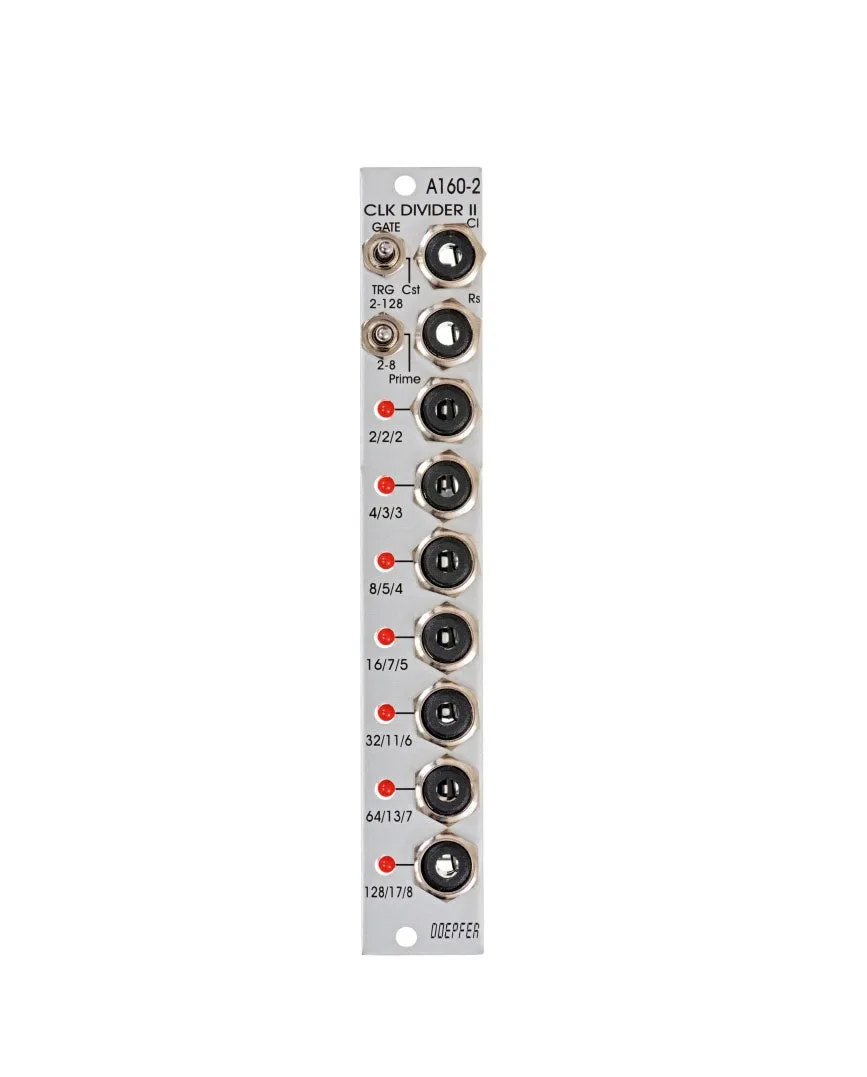

Module A-160-2 is an enhanced version of the standard clock divider A-160. The module is a frequency divider for clock/trigger/gate signals, designed to be a source of lower frequencies, particularly for rhythm uses. The Clock input will take any digital signal from, eg., an LFO, MIDI sync, or the gate from a MIDI-CV interface. At the outputs, you have access to three sets of seven different sub-divided clock signals, from half the clock frequency down to 1/128. The low/high levels of the output signals are 0V and about 10V.

The A-160-2 also has a reset input. Whenever a reset signal is sensed, all outputs are set to certain levels which depend upon the selected mode.

Brand new with warranty.

Video:

Product Specs

• Item Number: 9060
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: Germany
• MPN: A-160-2
• EAN: 4250711116026
• Modular Grid: Eurorack
• Dimensions*: 4 HP 35 mm deep
• Power*: 50 mA 12V 0 mA -12V 0 mA 5V

* User contributed details
