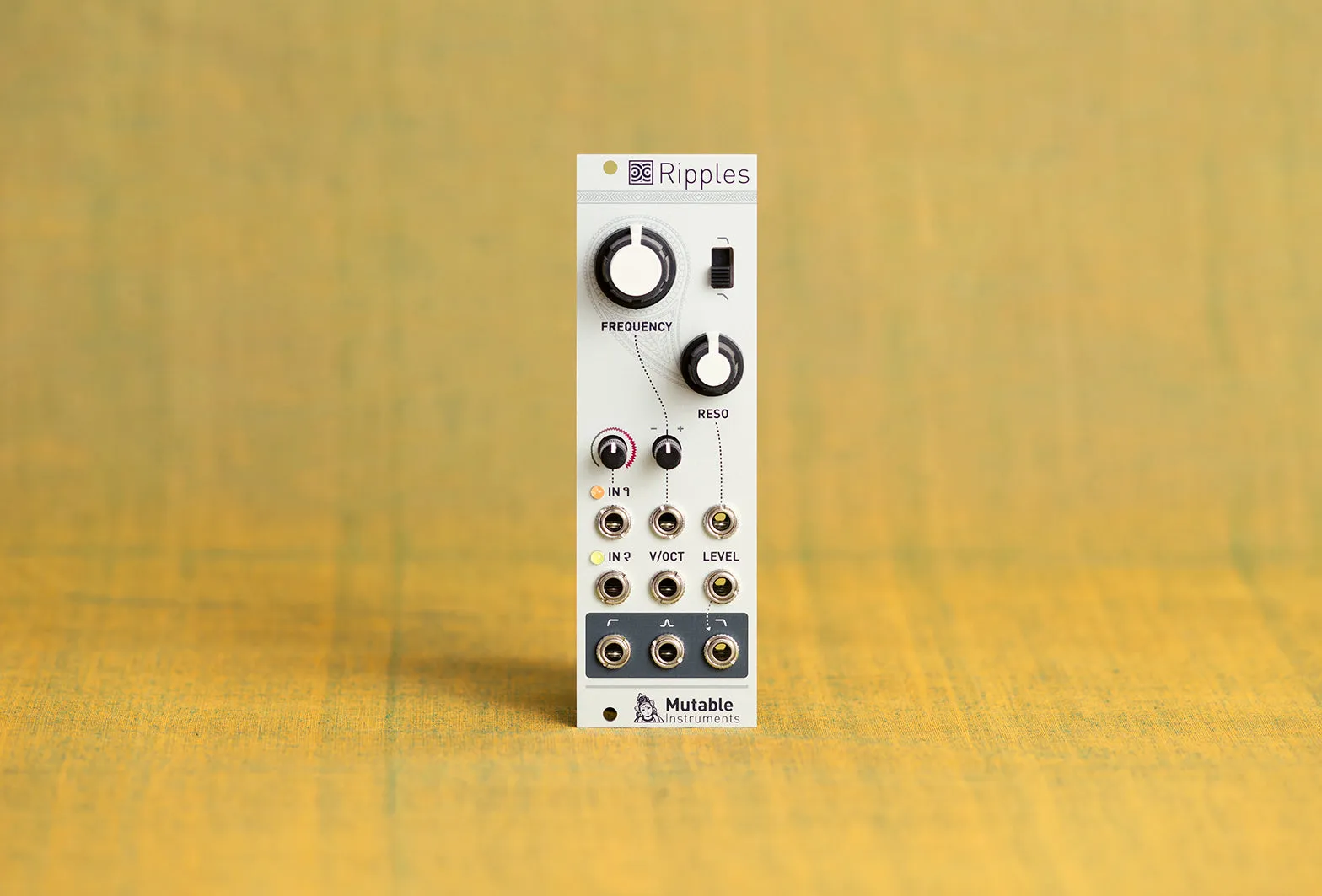

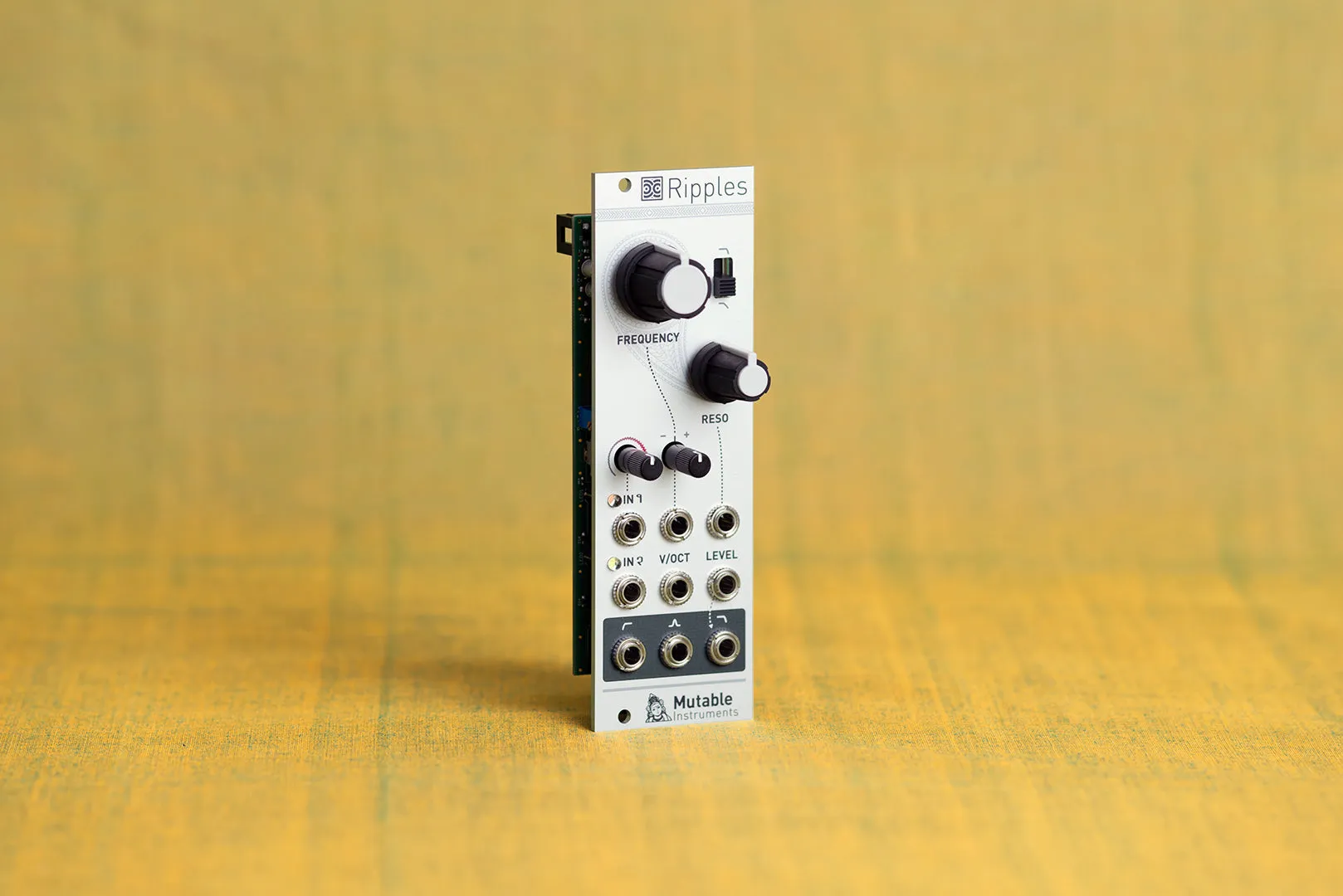

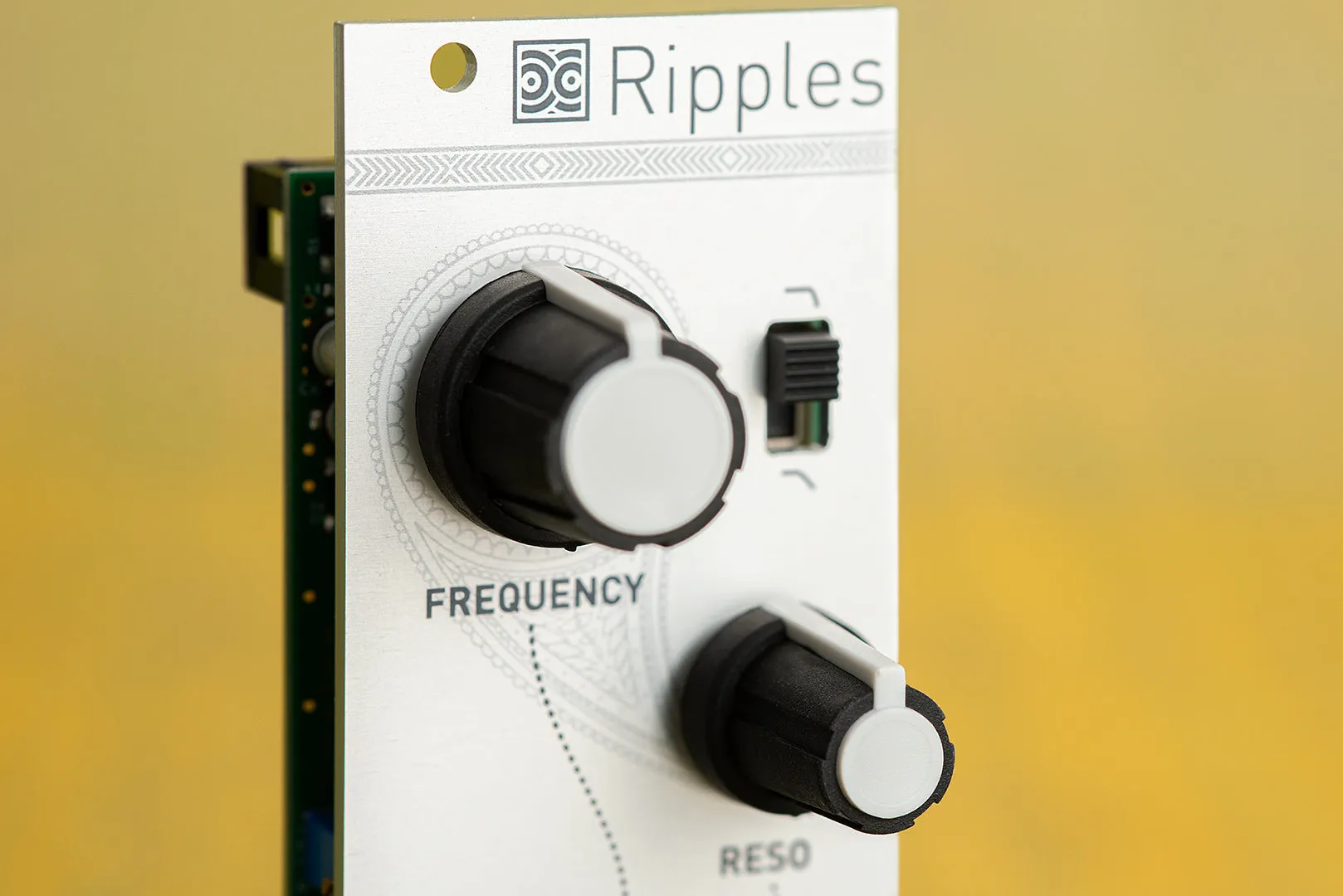

Ripples delivers a classic, big-sounding analogue four-pole filter in a managable 8-HP package, continuing Mutable Instruments’ lineage of warm and tasty filters started by the Shruthi SMR4 mkII and 4-Pole Mission.

Ripples has two input paths: one with a drive control, allowing the signal to be distorted (or providing enough gain for the processing of line-level signals), and the other totally transparent, preserving the clean-sounding character of the original version of the module.

Three filter modes are available: high-pass, band-pass, and low-pass. The slope (2 or 4 poles) of the band-pass and low-pass outputs is switchable.

Self-oscillation is available for all modes and produces a clean sine-wave on the low-pass output. Unlike many classic 4-pole designs, this filter does not suffer from “loudness drop” when resonance is increased. The resonance loudness compensation circuit brings a slight tone coloration reminiscent of Japanese classics from the 80s, with a very round and liquid resonance.

The low-pass output goes through an internal VCA. This makes Ripples a good final stage module for an inexpensive, or space-constrained, subtractive synthesis synth voice.

Video:

Product Specs

• Item Number: 4336
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: France
• MPN: MI-RIPPLES
• Modular Grid: Eurorack
• Dimensions: 8 HP 20 mm deep
• Power: 35 mA 12V 35 mA -12V 0 mA 5V
