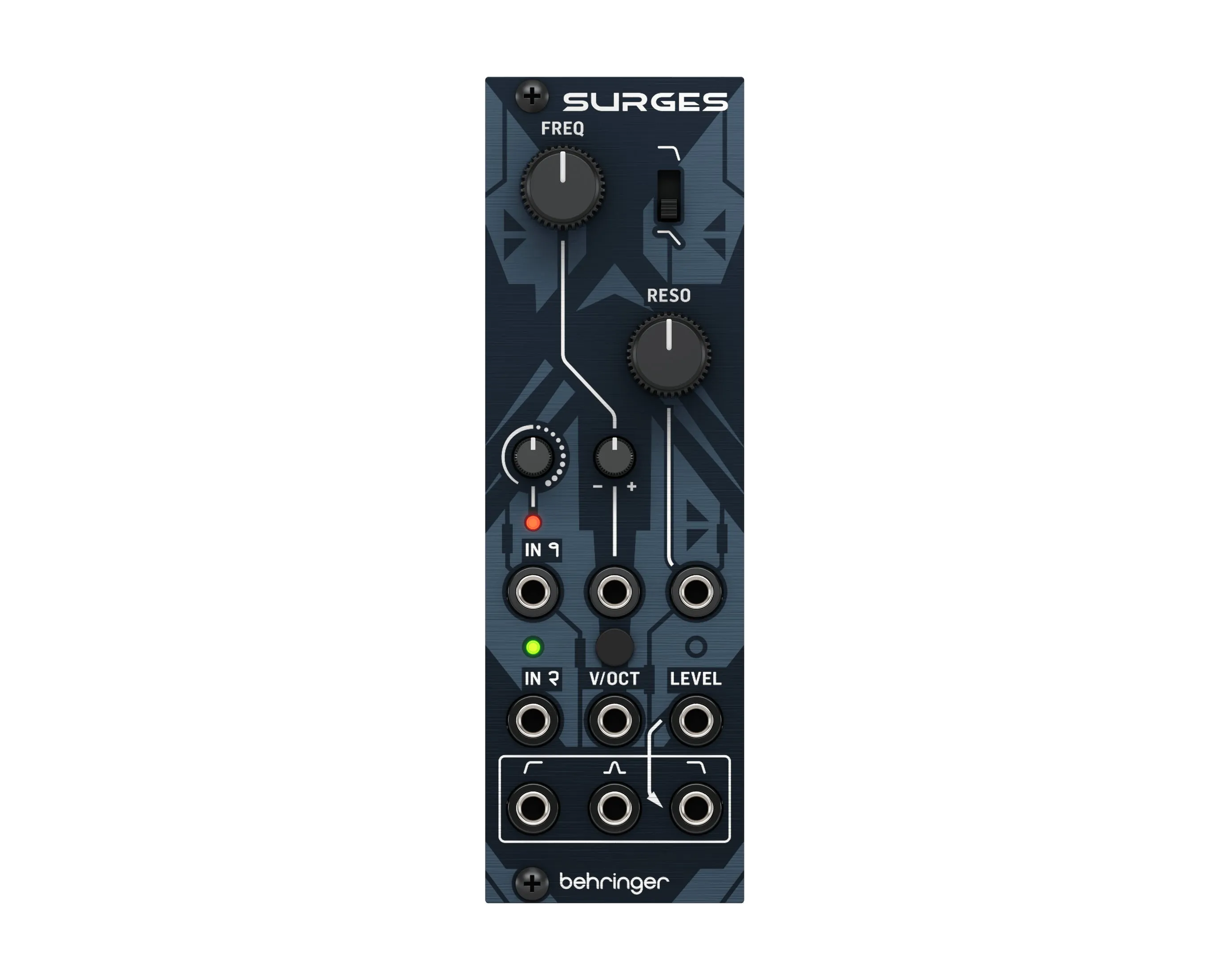

Based on Mutable Instruments Ripples, Surges is a voltage controlled filter capable of high-pass, band-pass and low-pass output, with additional 2-pole or 4-pole settings for band- and low-pass.

Additional Ins and Outs

• Audio inputs – signals from input 1 and 2 are mixed together with input 1 having a dedicated level knob that can result in an overdriven sound when pushed
• CV inputs – resonance and cutoff modulation
• Voltage controlled gain for low-pass output – externally control the level of the LP signal

Features

• Voltage controlled multimode filter which provide high-pass, band-pass and low-pass. The slope of the band-pass and low-pass output is switchable (2-pole or 4-pole)
• “Liquid” and musical tone coloration reminiscent of SH/Jupiter filters
• Loudness compensation with increased resonance
• Wide frequency range from 18 Hz to 18 kHz
• Purely analog circuitry based on legendary 2164 and 13700 semiconductors

Video:

Product Specs

• Item Number: 35019
• Make:
• Model:
• Condition:
• Finish: Blue
• Categories: ⇒
• Function:
• MPN: 450800
• EAN: 4033653000055
• Modular Grid: Eurorack
• Dimensions*: 8 HP 41 mm deep
• Power*: 35 mA 12V 35 mA -12V 0 mA 5V

* User contributed details
