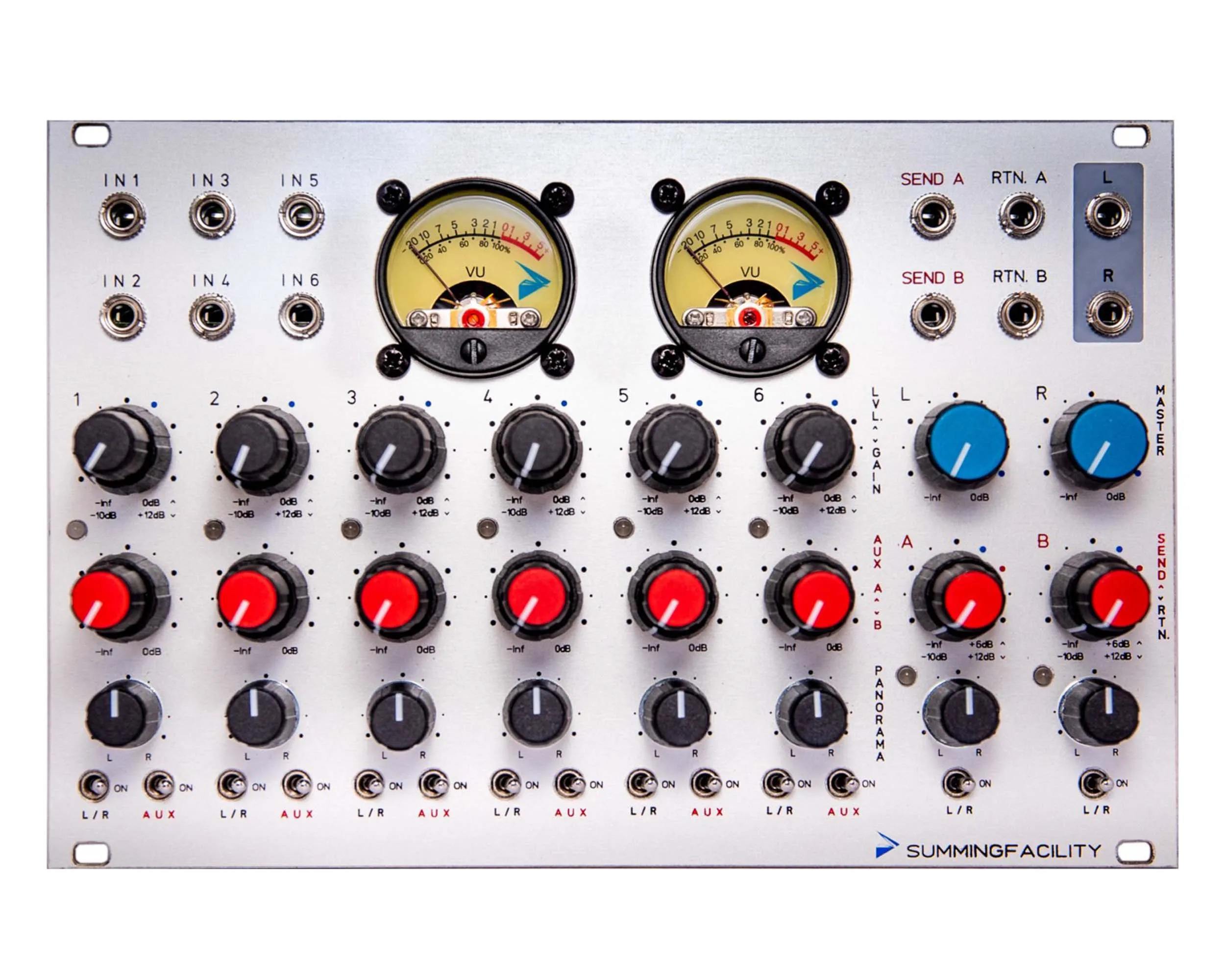

SUMMING FACILITY is a high quality 6 channel, 2 bus stereo Eurorack mixer.

The module makes summing and routing of modular and non-modular equipment easy and reliable. The 22 Vpp of headroom provides plenty of dynamic range to accommodate busy mixes with a transparent, punchy and 3D analogue sum.

The design mantra has been the lowest noise and distortion with the ultimate goal of delivering the best performances. The analogue vu-meters are the icing on the cake.

Problem to manage a mixed studio setup? SUMMINGFACILITY is here to rescue you!

TECHNICAL FEATURES SYSTEM

• 6 balanced input channels w/ gain up to 12 dB
• Adjustable volume & panorama
• 2 aux send per channel
• 2 balanced aux return w/ gain up to 12 dB
• Independent mute for master & aux buses
• Outputs w/ ground-cancelling circuitry

ENGINEERING

• 22 Vpp of headroom technique
• Modern audio grade op amps
• Thin-film resistors
• Wima & Panasonic caps
• 4 layer PCB (designed for best EMI/EMC)
• Reverse powering protection

PHYSICAL

• 38 HP
• Skiff friendly (32 mm behind the panel)

Video:

Product Specs

• Item Number: 24005
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: Italy
• MPN: AGO-SF
• Modular Grid: Eurorack
• Dimensions: 38 HP 32 mm deep
• Power: 220 mA 12V 220 mA -12V 0 mA 5V
