Name: After Later Audio TILT Function Generator and ADSR Envelope Generator
SKU: 1447314

Product Details ＋

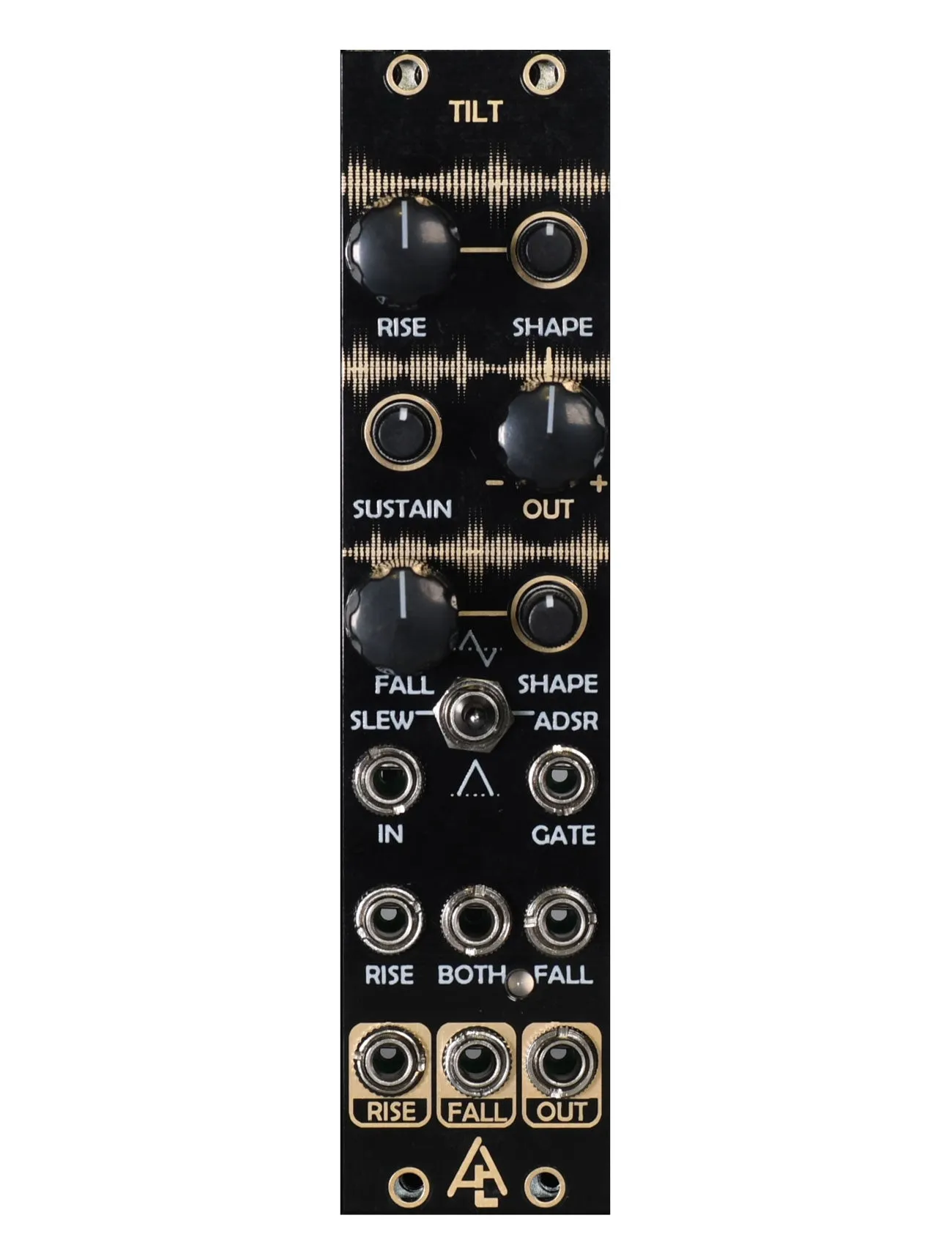

TILT is a 6HP Function generator and ADSR envelope generator.

A 'Jack of all trades', it can be a slew limiter, envelope generator, oscillator (both LFO and audio rate), and function generator.

It offering both a unipolar and bipolar output while adding separate controls for exp/log for both rise and fall and a gate/sustain function to get full ADSR envelopes. The rise output is high during the rising portion of the cycle and fall output is high during the falling portion of the cycle.

Use the IN input to get standard slew limiter functionality.

Use the GATE input to trigger an ADSR envelope then use the sustain control to control the level of the sustain. Rise will control the attack and fall controls both the decay and release times. You can also use the GATE input while using a cycle mode and this will adjust the 0V level to the sustain level. This gets some great effects with audio rate frequencies on the on the rise/fall controls.

There are two rate modes controllable by a jumper on the back. The module is set to AUDIO mode at the factory.
