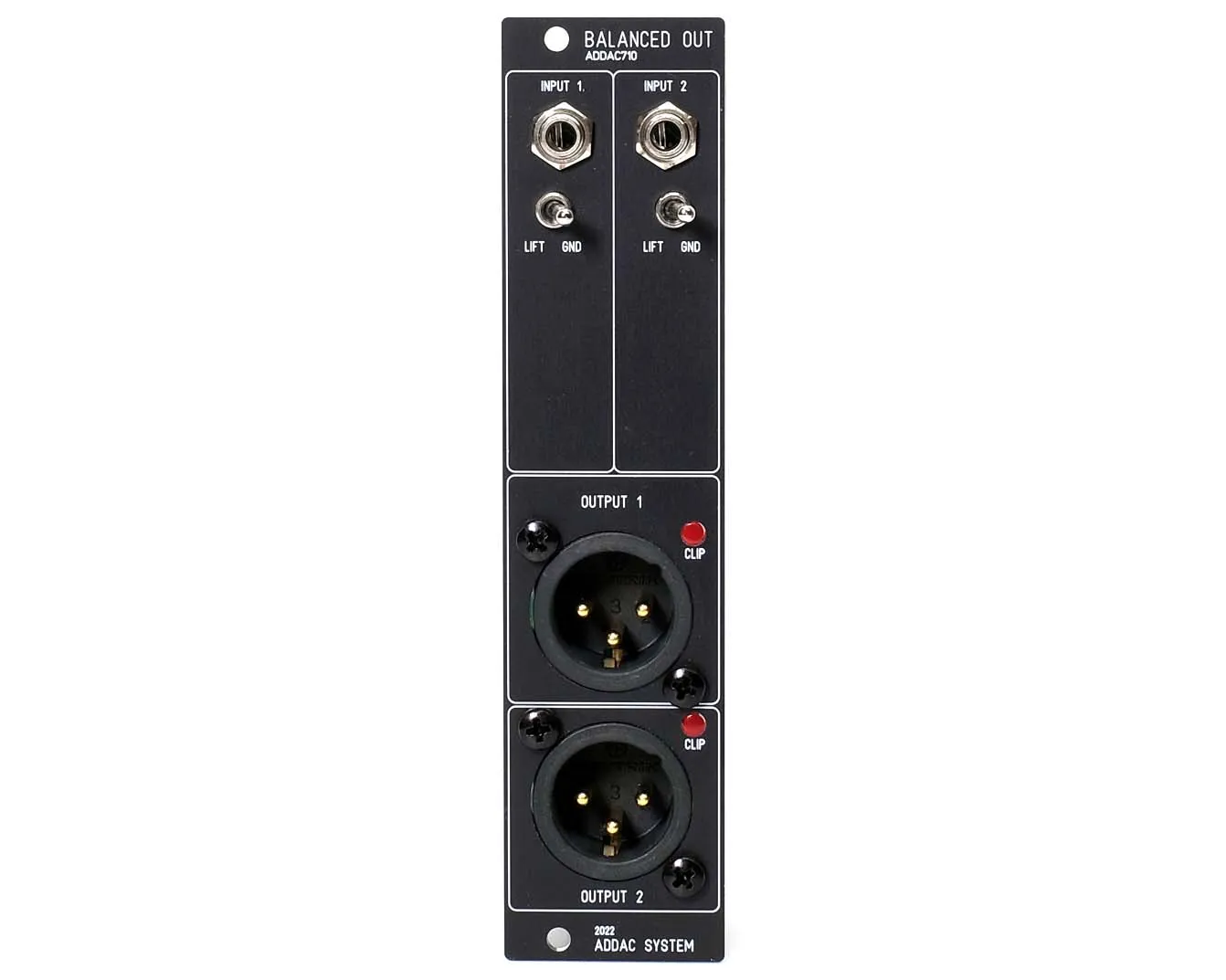

Designed to only output what your modular system is actually producing minus any noisy interference, the ADDAC710 is a dual channel Isolated DI box that provides galvanic, electrical isolation between the modular system and external sources. Such interference can be very common, and often caused by impedance mismatch or ground loop induced hum.
The ADDAC710 circuit is designed around an impedance matching transformer, operating in the 20 Hz to 20 KHz range, and provides two fully balanced outputs (via XLR connectors). This module serves as a low-cost alternative to the ADDAC800X High-End Outputs module, which ADDAC System has redesigned using a smaller low-cost transformer that also reduces it’s depth — making it perfect for more shallow Eurorack cases.
Features and Specifications:
- Two independent output channels
- LIFT/FLOAT/GND toggle switch
- Signal overload warning LED
- (2) XLR Outputs
- 6HP * 4 cm deep 40mA 12V 40mA -12V
Product Specs
- Item Number: 24870
- Make:
- Model:
- Condition:
- Finish: Black
- Categories: ⇒
- Function:
- Made In: Portugal
- MPN: ADDAC710
- Modular Grid: Eurorack
- Dimensions*: 6 HP 40 mm deep
- Power*: 40 mA 12V 40 mA -12V 0 mA 5V
* User contributed details
