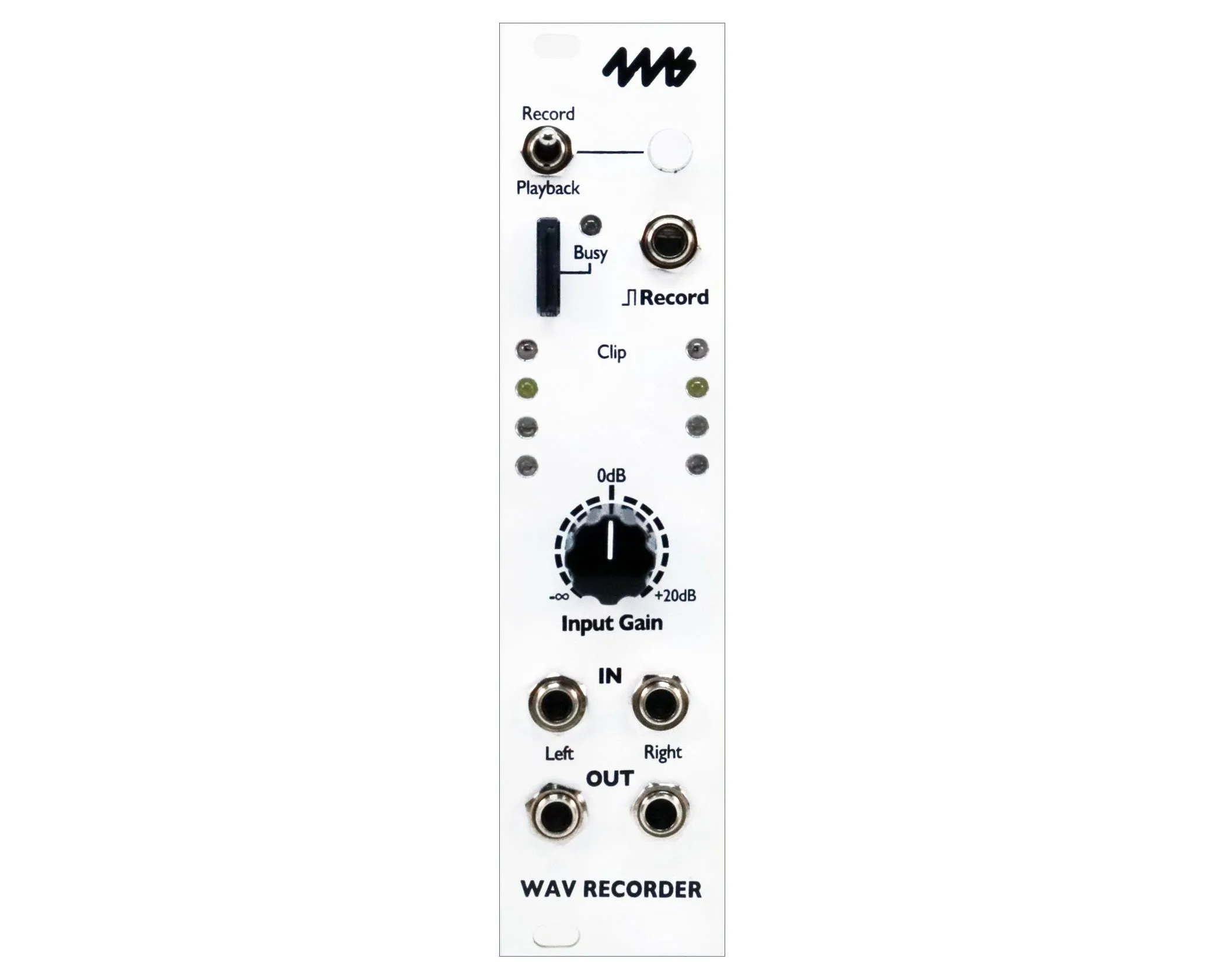

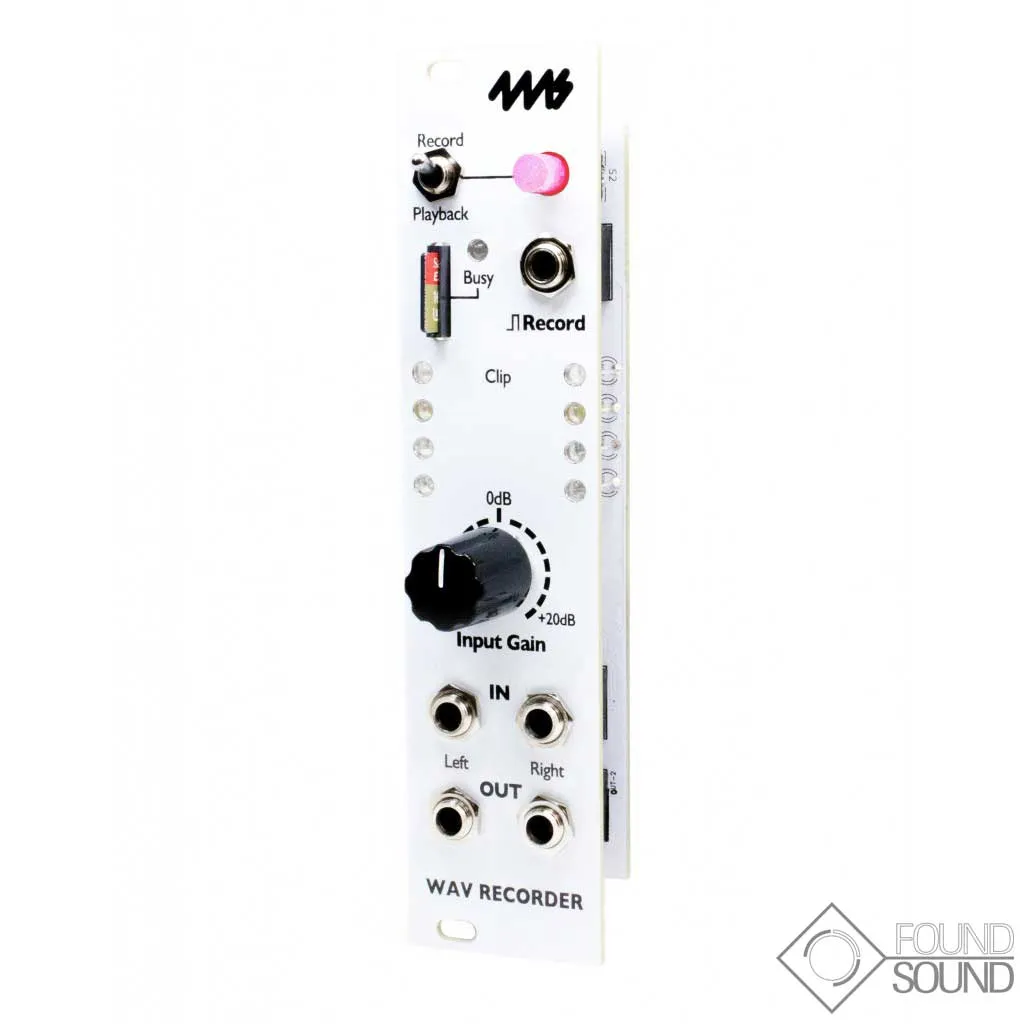

Records high-fidelity, low-noise, stereo WAV files onto microSD Card. Up to 96kHz, 24-bit stereo recording. Configurable to 96kHz, 48kHz, or 44.1kHz; and 24-bit or 16-bit; and stereo or mono. Accepts modular signal level or line level. Gain knob and LED level meter allows you easily boost or cut any signal, from synths to smart phones, without clipping. Audio can be monitored without recording, so the WAV RECORDER can also be used as a pre-amp for boosting line-level signals to modular level. Playback previous recordings or standard WAV files on the microSD Card. Playback and Record activated by button press, or a trigger jack.

Includes 16GB microSD card.

Video:

Product Specs

• Item Number: 8236
• Make:
• Model:
• Condition:
• Finish: White
• Categories: ⇒
• Function:
• Made In: United States
• MPN: WAVREC
• Modular Grid: Eurorack
• Dimensions*: 6 HP 25 mm deep
• Power*: 112 mA 12V 12 mA -12V 0 mA 5V

* User contributed details
